Standard configuration

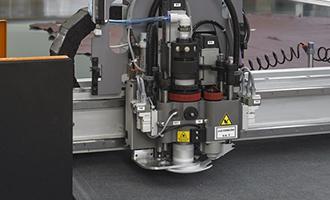

Standard Cutting Head
The standard head is available with 20 mm or 40 mm cutting clearance for flexible and semi-rigid materials.
← Back to Machinery
ATOM CNC Knife Cutting
Atom Flashcut Flex CNC Knife Cutting Machines
Versatile CNC Cutting for Modern Manufacturing
Versatile CNC knife cutting for flexible and semi-rigid materials, with configurable heads, table sizes, automation options and Flex Pro performance for demanding industrial production.
Australia & New ZealandInstallation & technical support
Texon Oz supplies the advanced ATOM Flashcut Flex range of CNC knife cutting machines across Australia and New Zealand. The range is designed for versatile, productive and precise processing of flexible and semi-rigid materials.
Built with ATOM engineering, robust construction, advanced CNC control and configurable cutting technology, Flashcut Flex systems provide fast, accurate and repeatable performance. Multiple table sizes, head configurations and automation options support both prototyping and high-volume production.
Versatile CNC Cutting for Modern Manufacturing
The Flashcut Flex range processes leather, foam, rubber, technical textiles, composites, plastics and synthetic materials. Standard machines can process flexible and semi-rigid materials up to approximately 25 mm thick, while HD configurations can cut suitable materials up to 130 mm thick.
Its modular tooling supports several production operations:
- Oscillating knife cutting
- Rotary knife cutting
- Creasing and perforation
- Punching and marking
- Milling and routing on selected configurations
Cutting-Head Configurations
Heavy-duty configuration
HD Cutting Head
The HD version is expressly designed for materials such as foam and corrugated or honeycomb cardboard. It supports cutting, creasing and 45-degree angle cutting at thicknesses up to 130 mm, depending on material and tooling.
EMHD Cutting and Milling
The brochure describes EMHD models for combined cutting and milling on materials up to 100 mm thick. A powerful knife chuck, 3 kW variable-speed router, rapid tool change and liquid cooling support intensive processing of rubber, plastics and composites.
Precision, Stability and Productivity
Partitioned Vacuum
An adjustable, sectorised vacuum system concentrates suction where required, holding materials securely while reducing unnecessary energy use.
Performance and Reliability
Solid mechanical engineering, quality components and advanced electronics support consistent speed, accuracy and repeatability.
Optional Double Gantry
Selected models can use a second cutting gantry so two cutting heads operate simultaneously to reduce cycle times.
Optimised Nesting
Automatic nesting systems reduce layout preparation time and improve material yield.
Static or Conveyorised Surface
Static tables suit sheet material, while belt-feed versions support continuous processing of sheet or roll material.
Projection, Acquisition and Feeding
High-brightness projectors, acquisition systems, spreaders, loading tables and off-loading tables can be integrated around the cutting workflow.
Flashcut Flex Machine Range
Available formats cover compact workspaces, general-purpose production, large materials and continuous workflows.
Compact solution

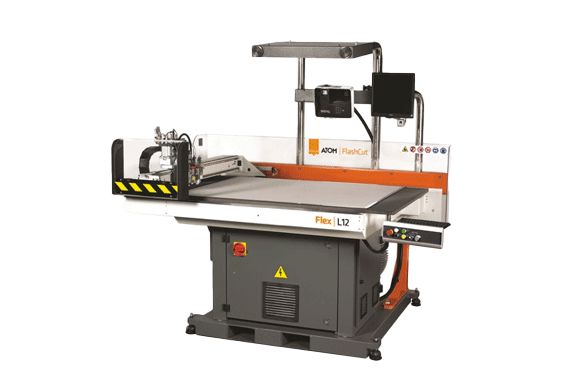

Flashcut Flex L12
Designed for small workspaces and maintenance operations.
Minimal footprint

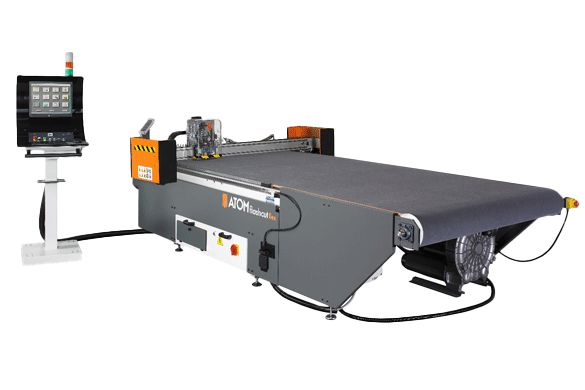

Flashcut Flex 1515
A high-performance configuration with a 1550 × 1550 mm working area.
Versatile production

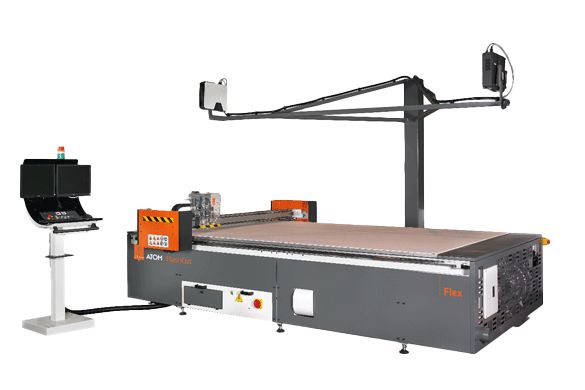

Flashcut Flex 3015
A broad-industry configuration with a 3050 × 1550 mm working area.
Large materials
Flashcut Flex 3026
Suitable for large materials and full hides, with a 3050 × 2600 mm working area.
Maximum capacity

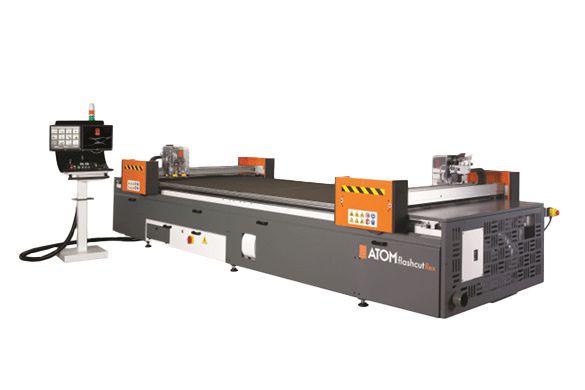

Flashcut Flex 4015
A large-format system with a 4050 × 1550 mm working area.
Gaskets and composites

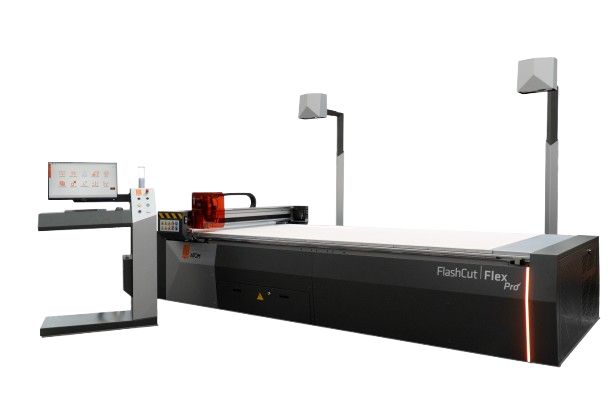

Flashcut Flex Pro
ATOM's Pro line combines higher performance, precision, safety, ergonomics and a strengthened cutting beam for tough materials.
Flex Model Technical Data
The supplied Flex-series brochure lists the following S-model working areas. Dimensions and weights vary with projection, table and gantry configuration.
| Model | Working area | Maximum absorption | S-model size without projection | Weight |
|---|---|---|---|---|
| Flex 1515 | 1550 × 1550 mm | 13.46 kW / - | 2500 × 4120 × 1220 mm | 1250 kg |
| Flex 3015 | 3050 × 1550 mm | 13.46 / 23.86 kW | 4000 × 4120 × 1220 mm | 1750 kg |
| Flex 3020 | 3050 × 2050 mm | 13.46 / 23.86 kW | 4000 × 4620 × 1220 mm | 2050 kg |
| Flex 3026 | 3050 × 2600 mm | 13.46 / 23.86 kW | 4540 × 5144 × 1220 mm | 2450 kg |
| Flex 4015 | 4050 × 1550 mm | 13.46 / 23.86 kW | 5250 × 4120 × 1220 mm | 2100 kg |
| Flex 4020 | 4050 × 2050 mm | 13.46 / 23.86 kW | 5250 × 4620 × 1220 mm | 2350 kg |
| Flex 6115 | 6100 × 1550 mm | - / 23.86 kW | 7300 × 5000 × 1220 mm | 3000 kg |
Flashcut Flex Pro
The supplied FLEX-PRO comparison identifies a new console, base and projector structure; ultrasonic protective devices; magnetic linear motors with absolute encoders; fewer mechanical and digital components; smoother, quieter axis movement; and a strengthened cutting beam.
| Specification | Flashcut Flex | Flashcut Flex Pro |
|---|---|---|
| Maximum cutting speed | 60 m/min | 120 m/min |
| Maximum acceleration | 6 m/s² | 12 m/s² |
| Ultrasonic safety guard | Not available | Included |
| Axis motion | Rotary brushless | Linear |
| Encoder | Rotary incremental / absolute | Linear absolute |
| Working area | 3050 × 1550 mm | 3050 × 1550 mm |
| Weight | 1750 kg | 2160 kg |
| Machine size | 4000 × 2120 × 1220 mm | 4000 × 2120 × 1220 mm |
Integrated Software and Automation
- Automatic nesting software
- Material acquisition and scanning systems
- CAD/CAM integration with DXF compatibility
- Projection systems for piece identification
- Automated feeding and unloading systems
Industries Using Flashcut Flex
Footwear Manufacturing
Leather uppers, insoles, synthetic materials, reinforcements and technical fabrics.
Automotive Interiors
Leather, fabrics, foam layers, sound insulation and composite laminates.
Furniture & Upholstery
Upholstery fabric, leather hides, foam padding and decorative materials.
Gaskets & Seals
Rubber, cork, fibre composites and technical gasket materials.
Packaging
Protective foams, corrugated materials and industrial packaging components.
Technical Textiles & Composites
Carbon fibre, glass fibre, industrial textiles and reinforced composite materials.
Materials That Can Be Cut
- Natural and synthetic leather
- Polyurethane, EVA, PE and technical foams
- Rubber, silicone, cork rubber and fibre gasket materials
- Woven, non-woven, filtration and reinforcement textiles
- Carbon fibre, glass fibre, pre-preg and layered composites
- PVC, flexible plastics, polymers and laminates
Why Choose Texon Oz
As the authorised distributor of ATOM cutting technology in Australia and New Zealand, Texon Oz provides machine supply and installation, operator training, technical support, spare parts, service and integration assistance.
Frequently Asked Questions - Flashcut Flex
What materials can Flashcut Flex process?+
Flashcut Flex can process leather, synthetic leather, polyurethane and EVA foam, rubber, gasket materials, technical textiles, carbon fibre and glass fibre fabrics, flexible plastics and packaging materials.
What industries commonly use Flashcut Flex?+
Common applications include footwear, automotive interiors, furniture and upholstery, gaskets and seals, packaging, technical textiles and composites.
What is the maximum cutting thickness?+
Standard systems process flexible and semi-rigid materials up to approximately 25 mm, while HD configurations can cut suitable materials up to 130 mm. Actual capacity depends on the material and tool configuration.
Why use CNC knife cutting instead of dies?+
CNC knife cutting works from digital files, reducing physical tooling costs and setup time while supporting rapid prototypes, design changes, custom components and short production runs.
Can Flashcut Flex integrate with CAD and nesting software?+
Yes. Flashcut Flex supports CAD/CAM workflows, common formats such as DXF, acquisition systems and nesting software for improved material yield.
Does Texon Oz provide installation and technical support?+
Yes. Texon Oz provides installation, commissioning, operator training and ongoing technical support throughout Australia and New Zealand.
Request a Quote or Demonstration
Contact Texon Oz to discuss the right Flashcut Flex model, head, table and automation configuration for your production requirements.
